Name: MICROTEK ONLINE UPS E² Series 1KVA 24VDC-IB
Brand: Microtek
SKU: MicrotekE2-24v-IB
Price: 16999 INR
Availability: InStock

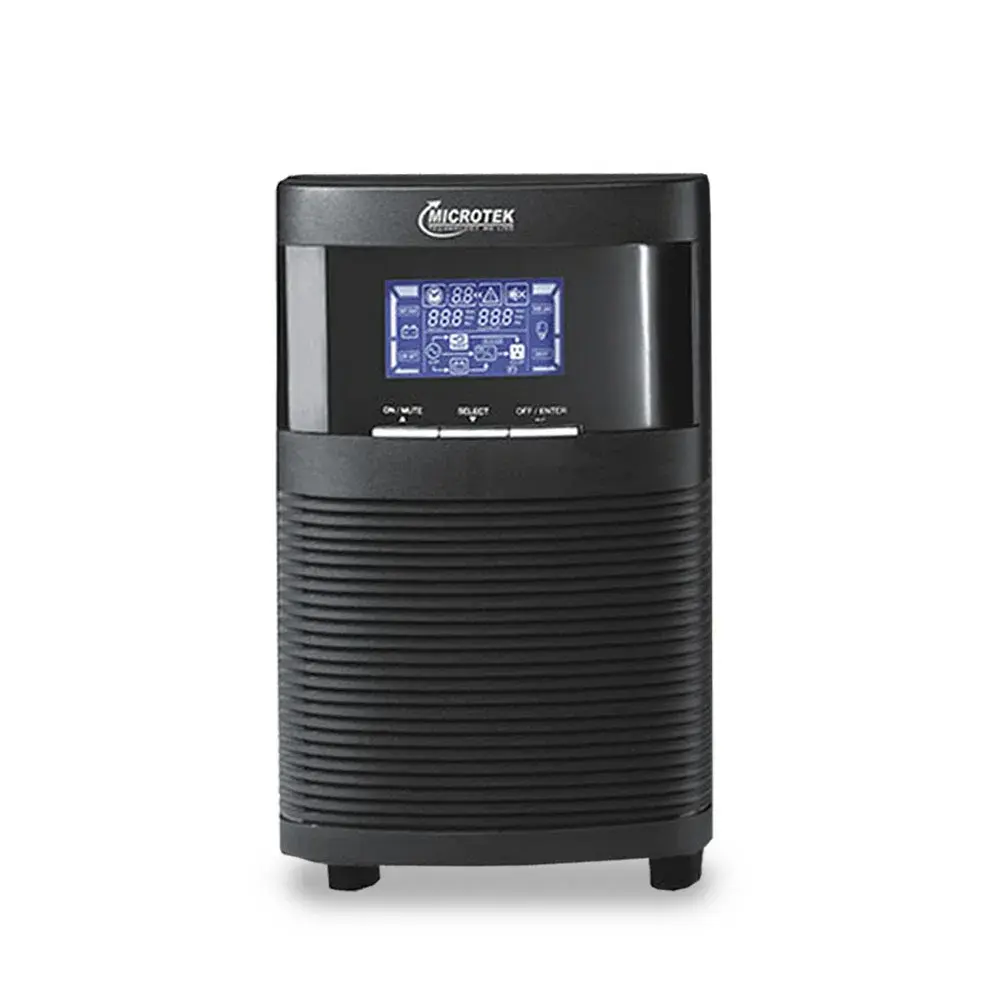

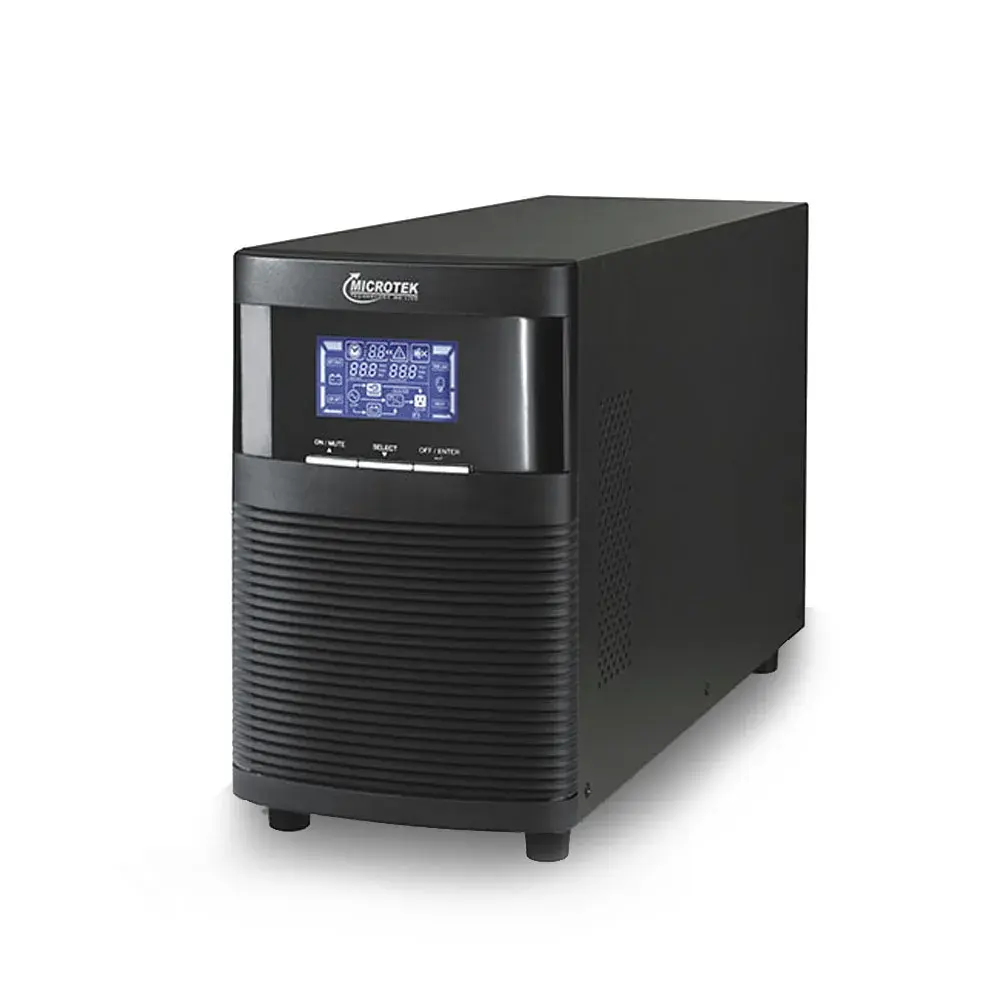

MICROTEK ONLINE UPS E² Series 1KVA 24VDC-IB

DOWNLOAD CATALOUGE

SALIENT FEATURES:

Inbuilt OVCD (Over Voltage Cut-Off Device) with Surge Protection.
Static Bypass-improves Reliability & Alarm (Optional) for Mute Mode.
Smart LCD Display for Real-time information.

Compare

Microtek High Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, ATM Machines and CCTV Camera etc. E2 Series Ensures Syschronization of the hardware, Software, analytics and ongoing services to ensure its customers vital applications run continously, perform optimally as per the requirement. this series is based on high frequency dobule convertion IGBT technology with static bypass which improves reliablility and operates with configurable output voltage settings.

Model Name: Online UPS E²-IB
Rated Capacity: 1 KVA / 800 Watts
Phase: Single Phase In, Single Phase Out
DC Voltage: SMF 12V / 9AH x 2 Nos. (IN-BUILT BATTERIES)

Advantages of using Microtek Online UPS

Emergency Power Supply: – Whenever there is a power outage or shutdown, the UPS stands as a reliable and reliable power source. You can continue your work by using UPS or Batteries in the uncertain state of remote power disconnection.
Protects the Voltage Sensitive Device from Bad Electricity: – You can detect power fluctuations in variable power leading to damage to the gadgets. The uninterruptible power supply provides stable output by controlling power fluctuations.
Provides Surgical Protection: – In the event of a power outage, UPS detects improper power supply and stops direct power supply. Then it gives us stable energy from its stock. It prevents the cause of damage to the devices due to power supply interruptions.
Battery Life Save: – You can continue working in operating mode even when the power is off as it keeps charging every time you connect the UPS to the battery.

GENRAL INFORMATION
MODEL NAME / NUMBER	ONLINE UPS E²-IB / NM24EM1KK11-IB
CAPACITY	1KVA/800V
DC VOLTAGE SYSTEM	24 VDC
INPUT
INPUT VOLTAGE RANGE	110VAC+5% – 300VAC+5%
FREQUENCY RANGE	40Hz – 70Hz
PHASE	SINGLE PHASE WITH GROUND
POWER FACTOR	>0.99 @ FULL LOAD
OUTPUT
OUTPUT VOLTAGE	200/ 208/ 220/ 230/ 240VAC
AC VOLTAGE REGULATION	+1% (Battery Mode)
FREQUENCY RANGE (Battery Mode)	50Hz+0.25Hz OR 60Hz+0.3Hz
CURRENT CREST RATIO	3:1
HARMONIC DISTORTION	<2% THD (Linear Load) 4% THD (N on-Linear Load)
OVERLOAD CAPABILITY	105%-110%: UPS SHUTS DOWN AFTER 10 MINUTES AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL. 110%-130%: UPS SHUTS DOWN AFTER 1 MINUTE AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL. >130%: UPS SHUTS DOWN AFTER 3 SECONDS AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL.
TRANSFER TIME	AC MODE TO BATTERY MODE 0/ INVERTER TO BYPASS: <4ms (Typical 2.5ms)
WAVEFORM (Battery Mode)	PURE SINEWAVE
EFFICIENCY
EFFICIENCY (AC MODE / BATTERY MODE)	88% / 83%
BATTERY & CHARGER
BATTERY TYPE & NUMBERS	SMF 12V / 9AH X 2 Nos. (In-Built Batteries)
CHARGING CURRENT	1A
PHYSICAL
DIMENTION (LxWxH)	282x145x220 mm
NET WEIGHT	9.8 KGS.
ENVIRONMENT
OPERATING HUMIDITY / TEMP.	20-95% RH @ 0-40°C (N on-Condensing)
NOISE LEVEL	LESS THAN 50dBA @ 1 METER (WITH FAN SPEED CONTROL)
STATUS INDICATIONS
DISPLAY	LCD DISPLAY INDICATIONS
